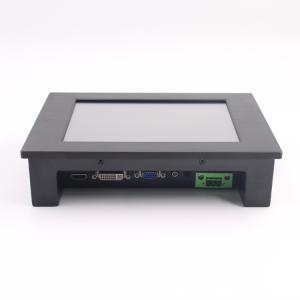

Penmount Controller Resistive Touch Front IP65 Waterproof Lcd Monitor For Vending Machine Kiosk
Features
1. Resistive touch screen with Penmount controller
2. I/O: HDMI, VGA, DVI, 1*USB for touch use
3. Phoenix terminal 9-36V wide voltage
4. Front IP65 waterproof
5. Embedded mount type
6. keypad on the back rear
Full Sepcification
| LCD Panel Characteristics | Screen Size | 8’’ LED Panel |
| Touchscreen Type | Resistive touch screen with Penmount controller |
| Resolution | 1024(H)x768(V) |
| Aspect Ratio | 4:3 |
| Brightness | 350cd/m2 |
| Contrast Ratio | 500:1 |
| View Angle | 85x85(H),85x85(V) |
| Response Time | 15 msec |
|
I/O Interface | USB | Yes |
| HDMI | yes |
| VGA | yes |
| DVI | Yes |
| Function | 8-36V wide voltage |
| Front IP65 |
| Mounting type | VESA hole 75*75/100*100mm / Embedded |
| Optional | Body sensor | High brightness |
| Bracket Mount | |
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption |
| Accessories | 1x8A Power Adapter with cable |
| Other Information | Material | Metal(Aluminum/stainless steel for choose) |
| Color | Black/Silver/White |
| VESA Mounting | 75*75/100*100mm Vesa hole/Embedded |
| Operation Environment | Operating Temperature | 0~60° C/-20-70C(optional) |
| Humidity | 5~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
8" waterproof lcd monitor Applications
Industrial plant
Oil, Gas and Chemicals Industrial
Animal Feed Production Facility
CNC Control Panel
Rugged Environment Application
Food & Beverage Processing Instrument
Package
1. Security packing method with bubble foam
2. Carton box / Wooden plate / Honeycomb carton
3. Standard one piece in a box, 2 boxes in a carton.
4. All Product will be checked 5 times before shipped.
5. For the shipping, you can choose DHL, Fedex, UPS or Use your forwarder, we will recommend economicaly way for your reference
Factory Advantages
1. Rich experience--INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Widely usage--7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer,
sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
3. ODM / OEM ability---INNODA own designers and engineers, our team have a lot of successful case experience
like The Opera House, Panasonic, Scales system...etc
