Square Screen Industrial Touch Pc , 4:3 All In 1 Pc Ubuntu

Product Categories
Shenzhen Innoda Technology Co., Ltd. CN
Contact Now

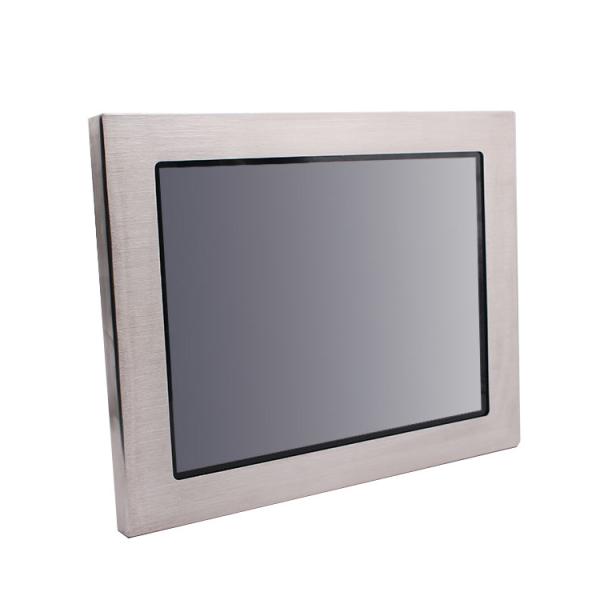

Square Screen Industrial Touch Pc , 4:3 All In 1 Pc Ubuntu

Brand Name : INNODA

Model Number : IND150PC

Certification : CE,RoHS, FCC

Place of Origin : Shenzhen,China

MOQ : 1piece

Price : Negotiable

Payment Terms : T/T, Western Union, L/C, Paypal/D/P, D/A, MoneyGram

Supply Ability : 5000 pieces per month

Delivery Time : 12working days upon receive the payment

Packaging Details : 1pc/carton weight: 6.5kgs/pc, packing size: 50×44×14cm

Type : 15'' Full IP65 Waterproof Panel Pc

Aspect Ratio : 4:3

Fan : Fanless

I/O port : USB, COM, RJ45

IP Rate : Waterproof IP65/67/68 optional

OS system : windows 7/10, linux, ubuntu

Working temperature : -10-60C

Material : 1.5mm Stainless steel

Contact Now

4:3 Square Screen Industrial Stainless Steel Panel Pc 15inch Waterproof IP67 AIO

Features

1. IP67 sealed stainless steel enclosure including I/O, Sealed I/O with cable set included.
2. Industrial LCD panel, wide viewing angle, high nits, true color.
3. Adopt capacitive touch screen, high precision, durable, anti-interference.
4. Fanless design.
5. High performance motherboard, 7x24 continuous operation.

Configuration

Processor System CPU Intel Quad-core J1900/2.0 GHz(Intel Core I3/I5/I7 optional)
Memory 2GB (up to 8G)
Storage 32G SSD(up to 1TB)
Operation System WIndows 7/8/10 OS(trial version)
LCD Panel Characteristics Screen Size 15-inch Lcd Panel
Touchscreen Type Capacitive touch screen
Resolution 1024(H)x768(V)
Aspect Ratio 4:3
Brightness 250cd/m2
Contrast Ratio 500:1
Response Time 10 msec
I/O Interface COM 1*RS232(can add to 4*COM)
USB 2xUSB2.0(can add to 4*USB)
LAN 1xRJ45, 10/100/1000 Mbps(can add to 2*RJ45)
DC jack 1x DC jack
Function WIFI with waterproof antenna
Bluetooth with waterproof antenna
Full waterproof IP67/IP68 optional
Optional Card Reader -NFC / RFID
WIFI (waterproof IP67 antenna imported from Germany)
8-36V wide range voltage
Brightness control button
1000nits High Brightness for sunlight readable
AG glass / AR glass
Power Supply Single 12 V DC power input, Max 18W Power Consumption
Accessories 8A Power Adapter with waterproof cables
Working Temperature -20~70° C
Other Information Material Stainless Steel SUS304(metal case option)
Color Black/Silver/White
Mounting VESA mount / Embedded
Certifiactes CE RoHS


Detailed Image

Square Screen Industrial Touch Pc , 4:3 All In 1 Pc UbuntuSquare Screen Industrial Touch Pc , 4:3 All In 1 Pc Ubuntu

Customization

1. size from 7''-42'' can be choose

2. Processor--Intel j1900/ I3/I5/I7 or Intel J3160 .....etc lower consumption board

3. Capacitive touch / Resistive touch / IR or without touch

4. 1000nits high brightness for sunlight readable

Square Screen Industrial Touch Pc , 4:3 All In 1 Pc Ubuntu

Our Advantage
1. Experience
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
INNODA computer/monitor which is widly used for kitchen,food industry, boat...etc


Square Screen Industrial Touch Pc , 4:3 All In 1 Pc Ubuntu

ODM OEM acceptable!
