Features
1. Panel size is 10.1 inch, with TFT LED backlight.
2. Sealed design with heat sink in back case.
3. 1000 nits ,sunlight readable. (350nits indoor brightness optional)
4. Adopt 5 wires resistive touch screen, high precision, durable, anti-interference.
5. All housing is IP65 waterproof and dustproof.
6. Various water-tight IO Cables included.
7. 5MP HD wide temperature Webcam
8. VESA Mounting - 75mm - 100mm(mounting brackets available).
| Processor System | CPU | Intel Quad-core J1900/2.0 GHz(Intel Core I3/I5/I7 optional) |
| Memory | 2GB (up to 8G) |
| Storage | 32G SSD(up to 1TB) |
| Operation System | WIndows 7/8/10 OS(trial version) |
| LCD Panel Characteristics | Screen Size | 10.1’’ LED Panel |
| Touchscreen Type | Resistive touch screen(Capacitive touch optional) |
| Resolution | 1280(H)x800(V) |
| Aspect Ratio | 16:9 |
| Brightness | 1000cd/m2 |
| Contrast Ratio | 500:1 |
| Response Time | 10 msec |
| I/O Interface | COM | 1*RS232(can add to 4*COM) |
| USB | 2xUSB2.0(can add to 4*USB) |
| LAN | 1xRJ45, 10/100/1000 Mbps(can add to 2*RJ45) |
| DC jack | 1x DC jack |
| Function | 5MP Webcam |
| Full IP65 waterproof |
| Optional | WIFI (waterproof IP67 antenna imported from Germany) |
| 8-36V wide range voltage |
| Brightness control button |
| 1000nits High Brightness for sunlight readable |
| AG glass / AR glass |
| Power Supply | Single 12 V DC power input, Max 18W Power Consumption |
| Accessories | 8A Power Adapter with waterproof cables |
| Working Temperature | -40~80° C |
| Other Information | Material | Stainless Steel SUS304(metal case option) |
| Color | Black/Silver/White |
| Mounting | VESA mount / Embedded |
Detailed Image
Applications
It is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, truck, food Industry, security Turnstile, chemical manufacturing, tennis courts, sports ground and other outdoor applications.
Advantages
1. Working temperature range is -40°C to 80°C.
2. Industrial LCD panel is wide viewing angle, high nits and true color.
3. Brightness is 1000 nits, sunlight readable suitable for more outdoor applications.
4. High performance motherboard, 7x24 continuous operation.
5. Symmetric design can be utillized in portrait mode with style.
6. Heat sink in back case great for heat dissipation and beatiful appearance.
7. Working voltage is wide range 9-36V, suitable for various applications.
INNODA have 10years rich experience in Industrial Computer/monitor filed. Our eingineers all have at least 13years experience.
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android tablet...etc. which have excellent work performane.It offers rich of interface to meet csutomers needs.
Product Tags:
|
|

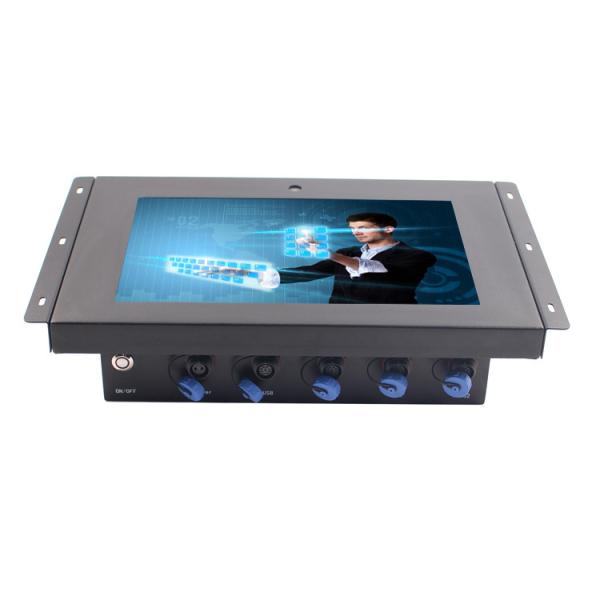

Fanless IP65 10.1" Waterproof Panel PC 350nits With 5MP Webcam Images
|
